Introducing BENCHLAB, a Real-Time System Telemetry Solution by Open Benchtable and ElmorLabs

Introducing BENCHLAB, a Real-Time System Telemetry Solution by Open Benchtable and ElmorLabs

Taipei, Taiwan, December 29, 2023 - Illuminate your insights with BENCHLAB, the cutting-edge, real-time system telemetry solution engineered for PC DIY enthusiasts brought to you by Open Benchtable and ElmorLabs.

BENCHLAB allows you to effortlessly monitor critical system metrics, including temperature, power usage, and voltage levels, as well as conveniently manage system fan speeds. The telemetry data is displayed in the BENCHLAB software where you can also log it to a file or export to HWiNFO.

“We’re very proud to extend the functionality of the Open Benchtable with a powerful tool like BENCHLAB,” said Pieter-Jan Plaisier, Open Benchtable co-founder. “The BENCHLAB helps our customers keep track of vital system telemetry during test sessions.”

ElmorLabs is thrilled to partner with Open Benchtable on the innovative BENCHLAB project,” said Jon Sandström, ElmorLabs founder. Our joint effort has resulted in a sophisticated yet user-friendly telemetry solution that not only provides real-time data but also enhances the overall experience for PC builders and enthusiasts.

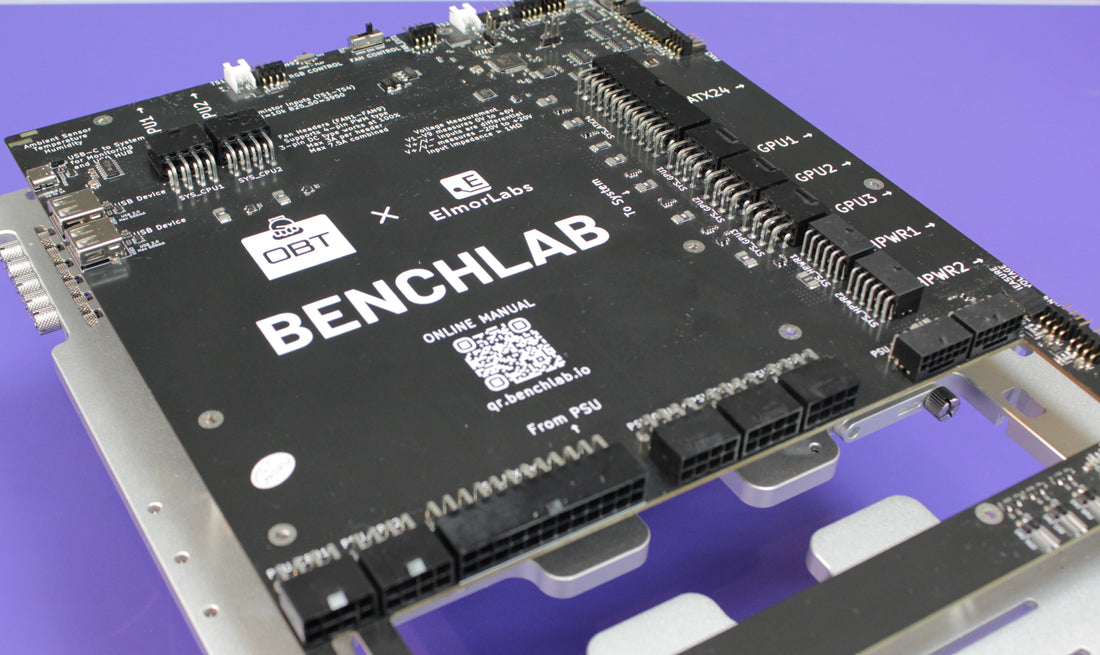

benchlab pcb



BENCHLAB Key Features

BENCHLAB ensures complete visibility over your system's power consumption by providing comprehensive power measurement for 24-pin ATX, 8-pin EPS, 6+2-pin PCIE, and 12+4-pin 12VHPR connectors.

In addition, the BENCHLAB voltage measurement system features one ±18V differential and twelve 0-4V single-ended channels which enables you to keep a close eye on voltage fluctuations, guaranteeing stable and secure operation.

To keep track of the thermal operating conditions, BENCHLAB's advanced temperature measurement functionality includes an embedded ambient temperature and humidity sensor, as well as support for four external temperature sensors.

The conveniently integrated fan controller supports up to nine 4-pin PWM fans whose curves can be mapped to any of the temperature sensors via the BENCHLAB software. In case you don't want to use the software, you can also control the fans using a physical switch.

The BENCHLAB connects to your system via a USB Type-C connector. Once connected, you can use our software to monitor, log to CSV, and export to HWiNFO the system telemetry.

BENCHLAB also features several I/O connections, including a built-in USB hub with 2x USB Type-A for your keyboard, mouse, or other peripherals. Three 2-pin connects can be used for specialty functions such as power on and reset. Last but not least, an special port is reserved for future expansion capabilities.

The BENCHLAB seamlessly fits any full size BC1 Open Benchtable and squeezes neatly underneath your system. Thirty ARGB LED fitted on the backside of the PCB provides you with a stunning, customizable visual backdrop.



BENCHLAB is Now Available for US$199

BENCHLAB is now available for pre-order from our official BENCHLAB web shop as well as through Open Benchtable and ElmorLabs. It is set to ship globally starting from January 15, 2024. For more information and pre-orders, visit the official BENCHLAB website.



About Open Benchtable

open benchtable logo
The Open Benchtable project is a community-driven collaboration that started in 2015 between HWBOT, Overclocking-TV and Streacom to create a truly exceptional benchtable, one that redefines the product category and towers above current offerings in terms of portability, aesthetics, quality and design. https://openbenchtable.com/.



 About ElmorLabs

Elmorlabs logo
ElmorLabs Ltd was founded 2018 in Taipei, Taiwan by Jon Sandström (aka elmor). We’re focused on designing hardware, firmware and software for PC applications often related to extreme overclocking. https://www.elmorlabs.com/.
