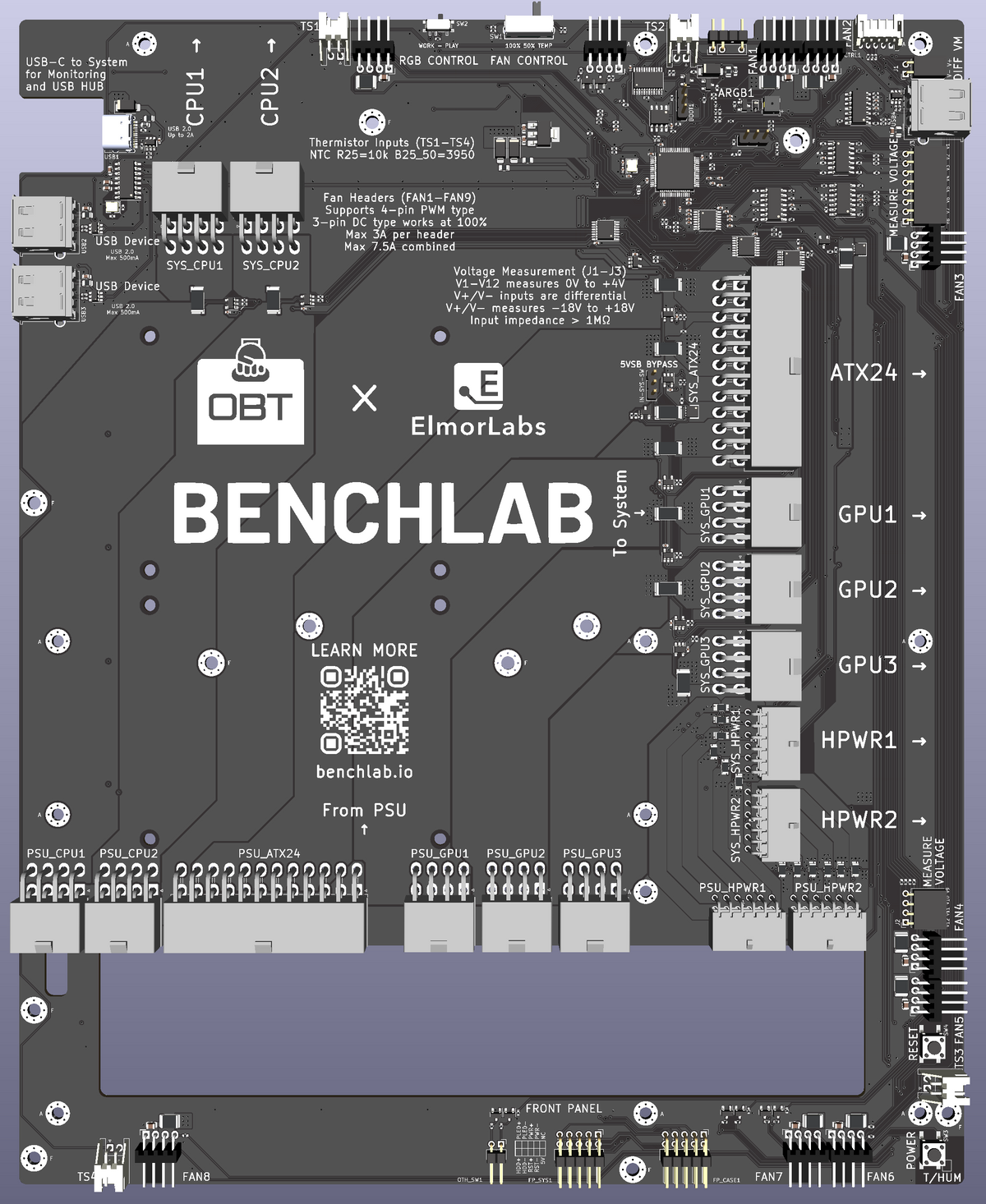

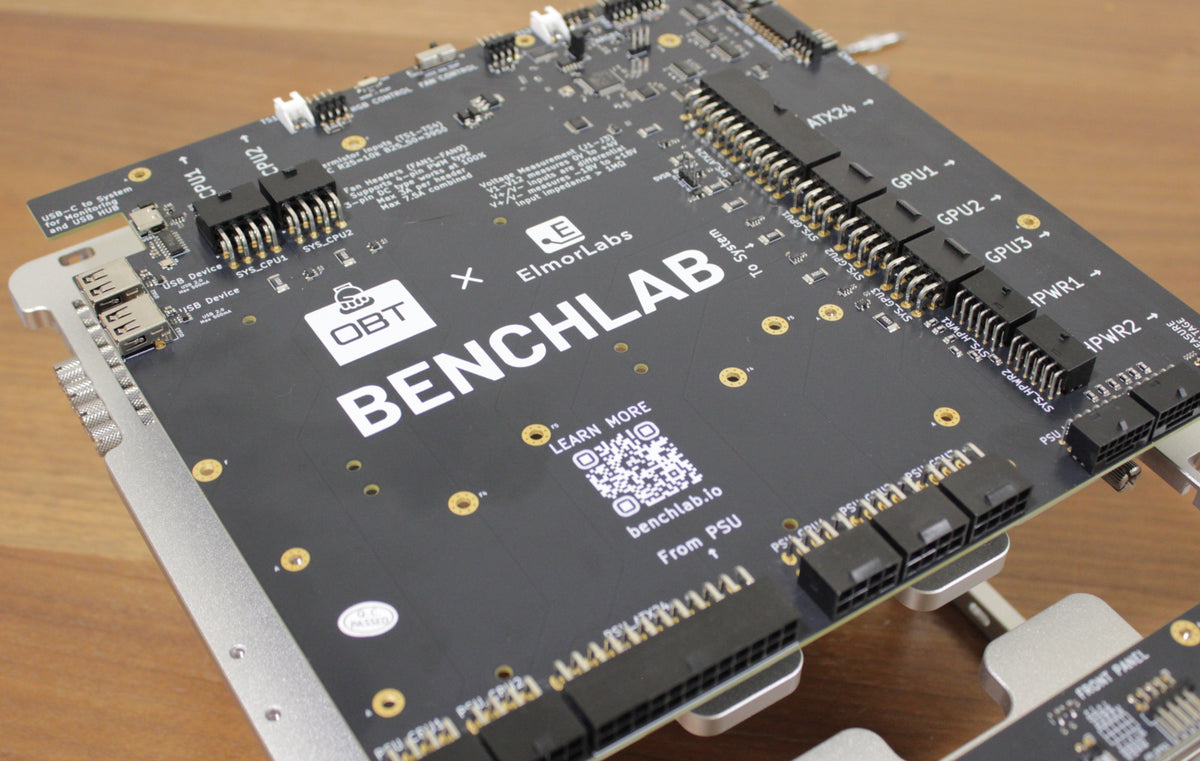

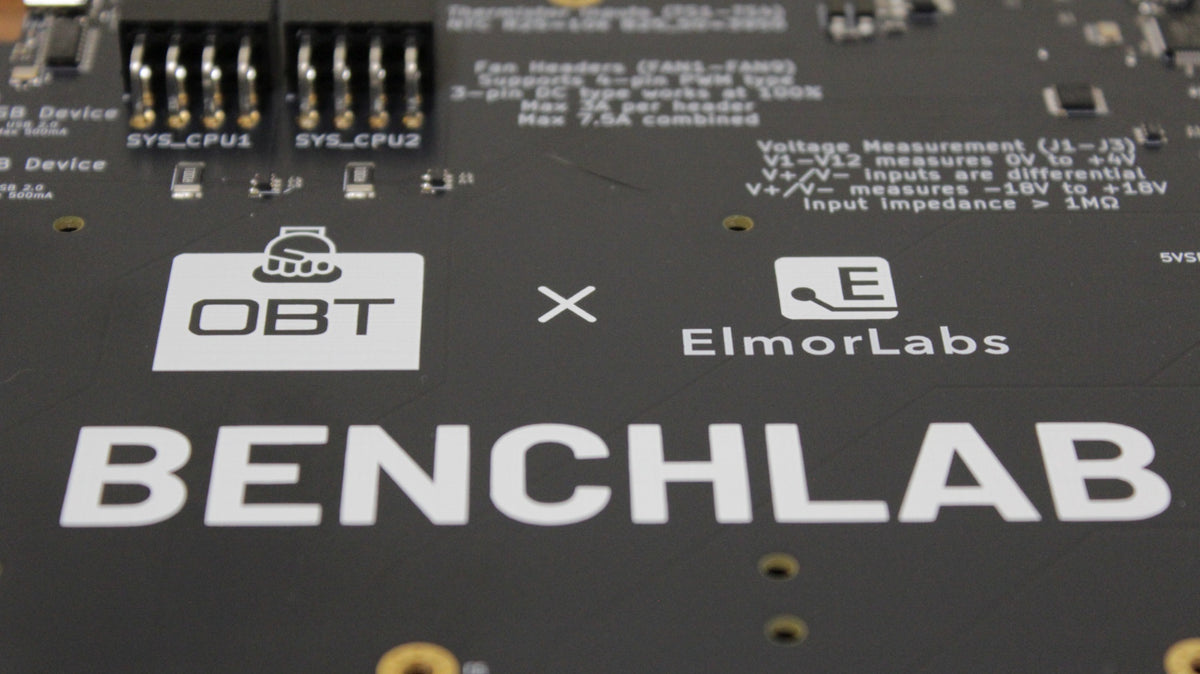

BENCHLAB 2 is a cutting-edge, compact real-time system telemetry solution engineered for PC DIY enthusiast and R&D labs. It allows you to effortlessly monitor critical system metrics, including temperature, power usage, and voltage levels, as well as conveniently manage system fan speeds.
Telemetry data is available via the BENCHLAB software which also allows you to log the data to a file or export directly to HWiNFO. We also offer a number of other software packages that enable you to integrate BENCHLAB telemetry into your own projects and tools.
Notice: expected shipping by end of October 2026!
New Features

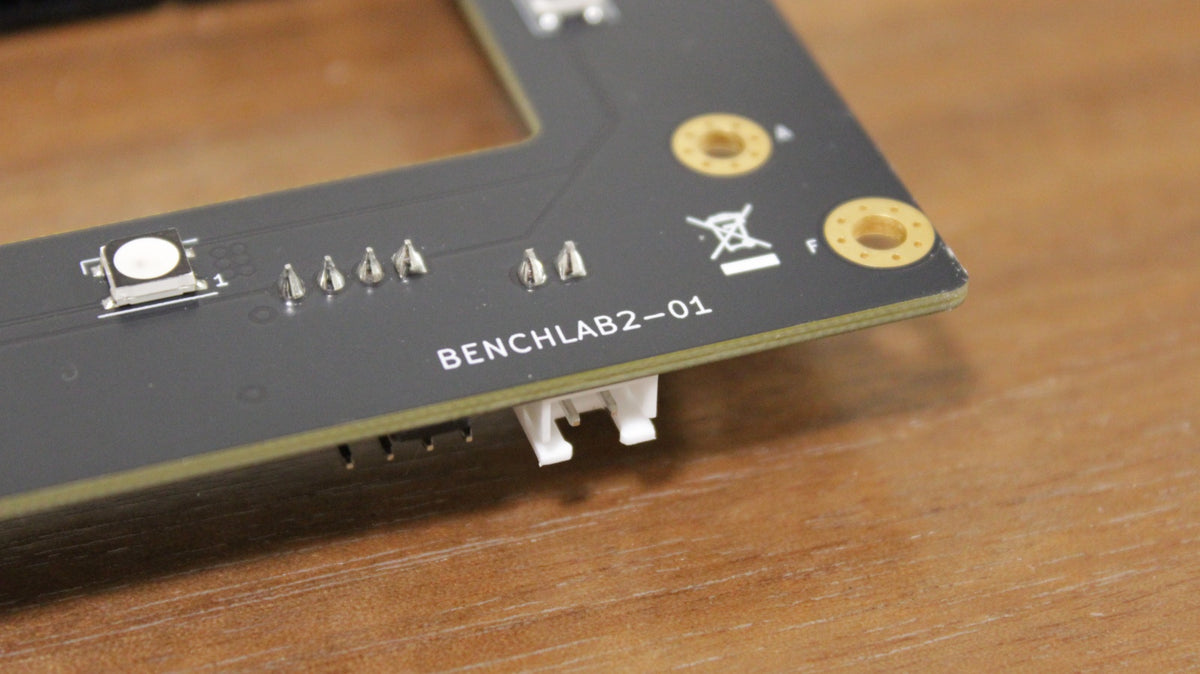

BENCHLAB 2 is the successor to the original BENCHLAB. The new revision introduces:

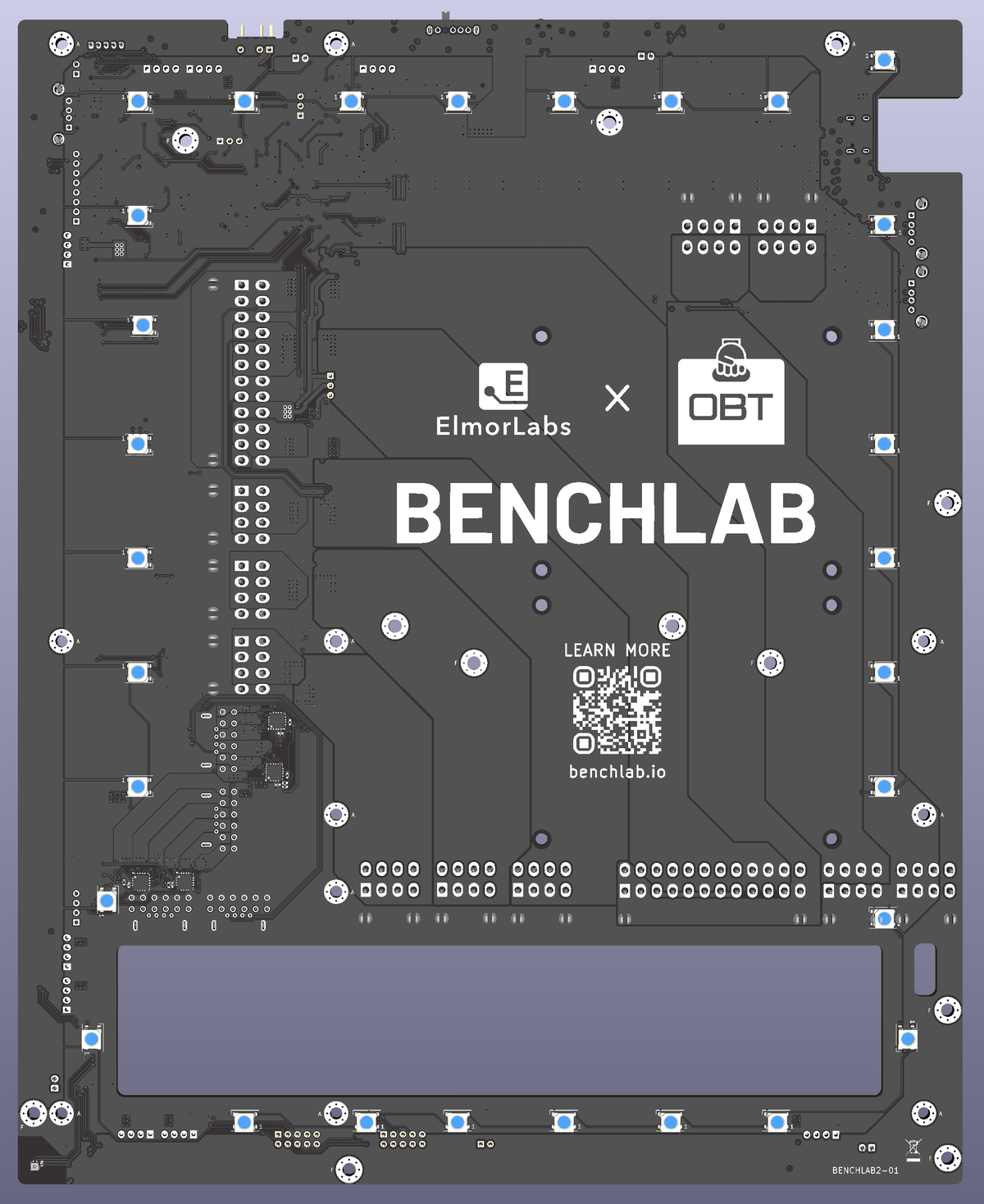

Improved noise and vdrop across all rails thanks to 6-layer PCB design.

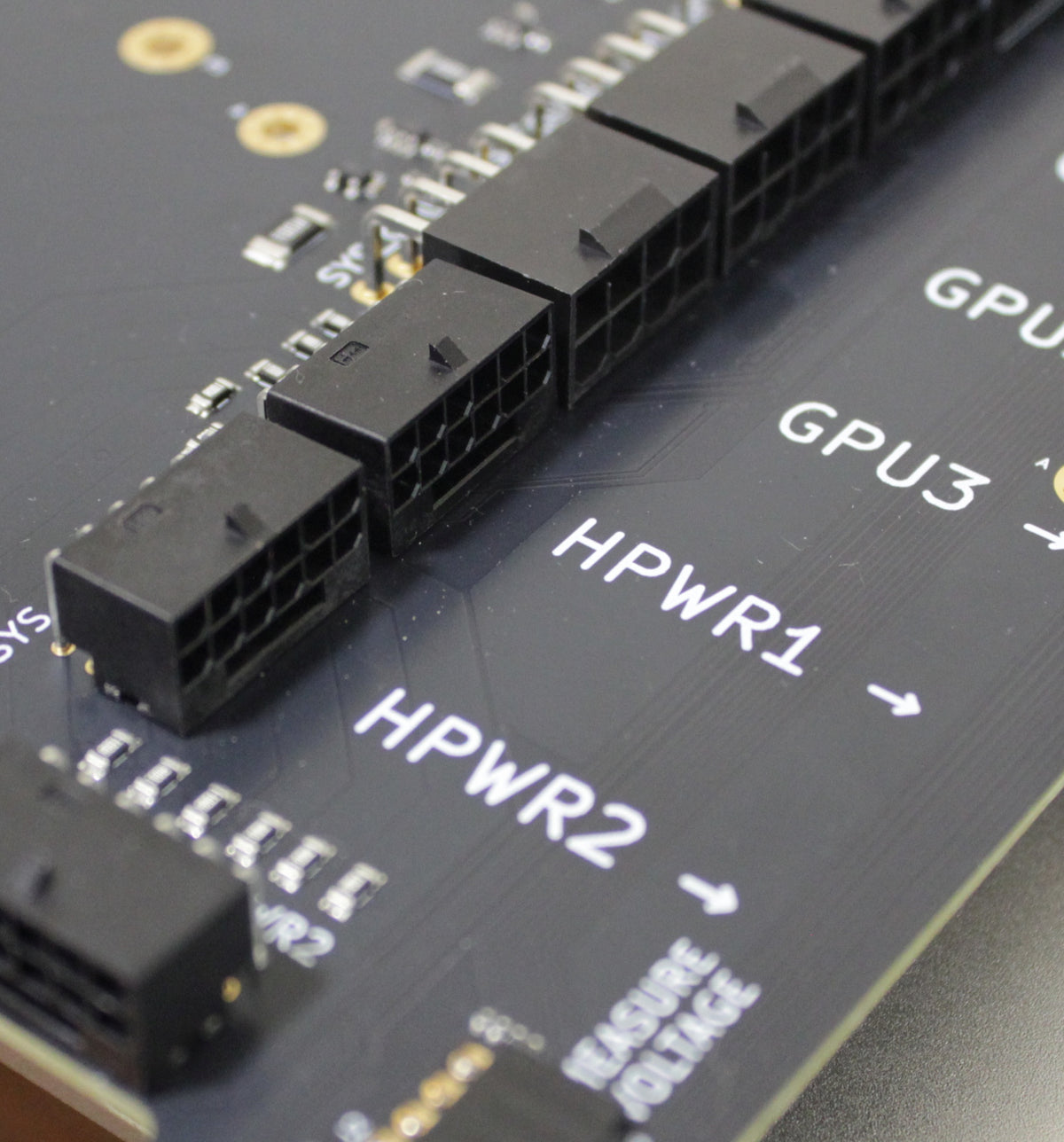

Per-pin 12VHPWR monitoring for both 12VHPWR connectors.

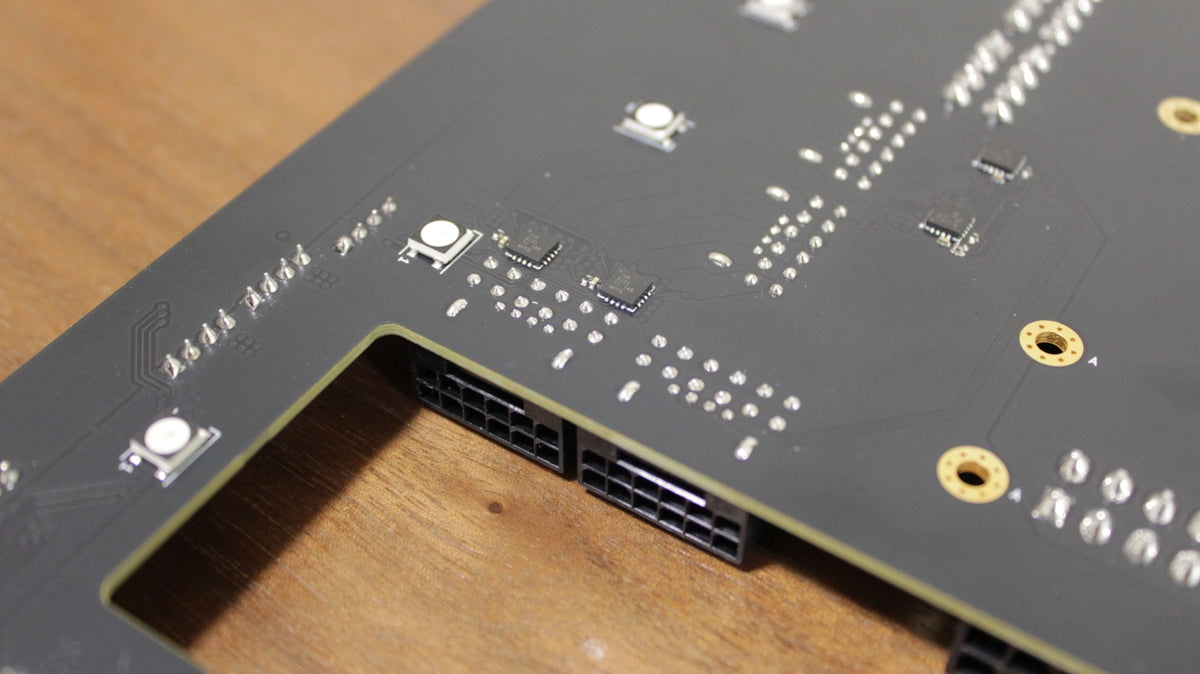

12VHPWR power in/out temperature monitoring.
Additional mounting holes for Corsair Frame 4000D/5000D chassis.

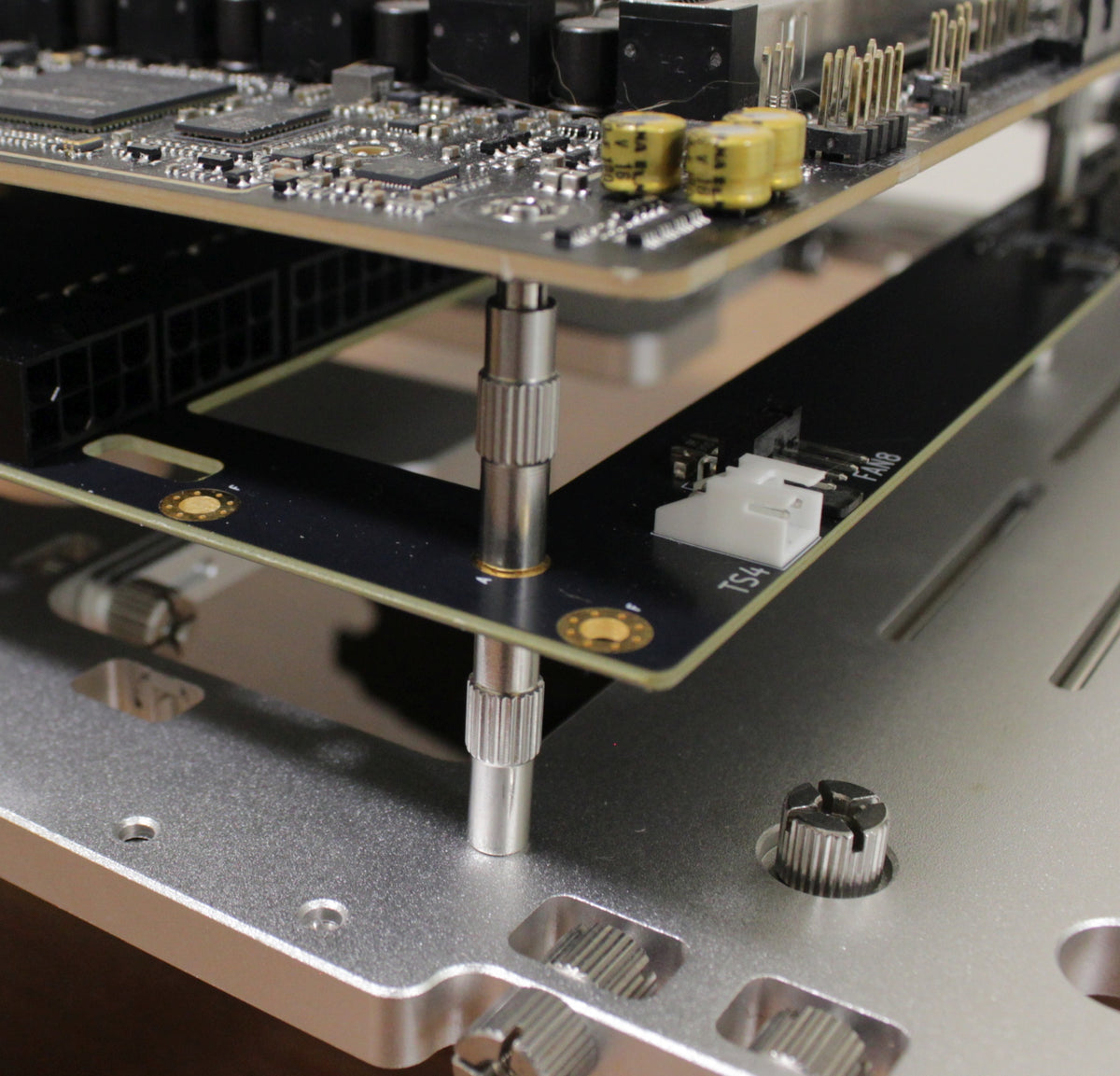

Support for mounting up to 2 SSDs.
Add 5VSB switch function.
Add physical power on button.
Add buzzer for audible warning.
Integrated fault and alarm system for device protection.
Replace separate power/reset headers with industry standard f_panel.
Package Content

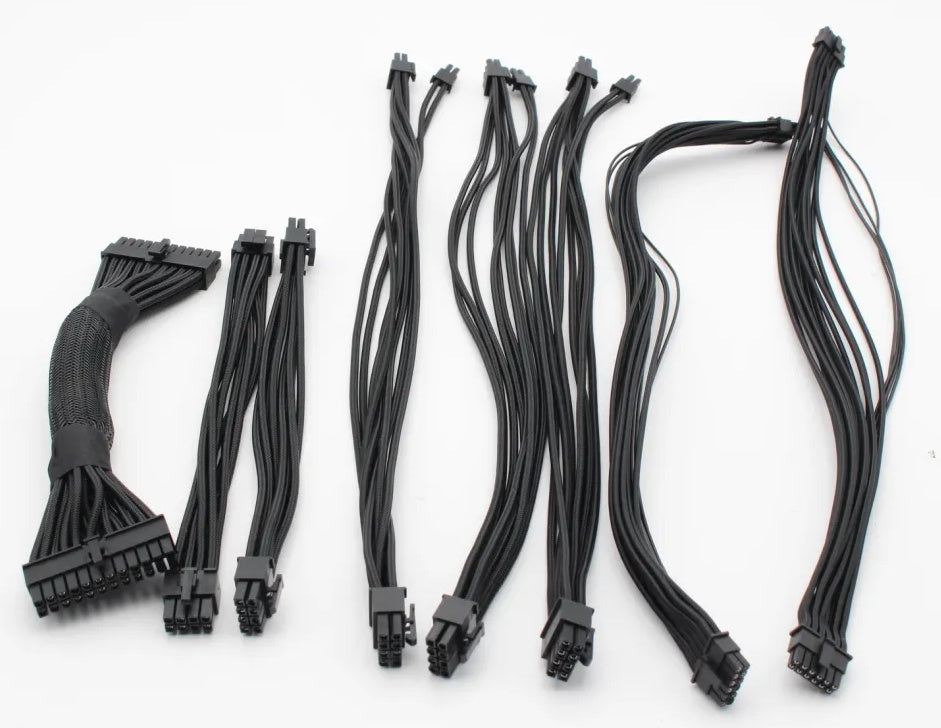

1x BENCHLAB 2 PCB
Power Measurement
1x 24-pin ATX plug to 24-pin ATX plug, 20cm (black)
2x 4+4-pin EPS plug to 8-pin EPS plug, 20cm (black)
3x 6+2-pin PCIE plug to 8-pin PCIE plug, 40cm (black)
2x 12+4-pin 12VHPWR plug to 12+4-pin 12VHPWR plug, 40cm (black)
Voltage Input
4x 1-pin dupont male with test hook, 30cm (red, green, yellow, blue)
Fan Ext
1x 4-pin to 4-pin fan header receptacle, 30cm (black)
Thermistor

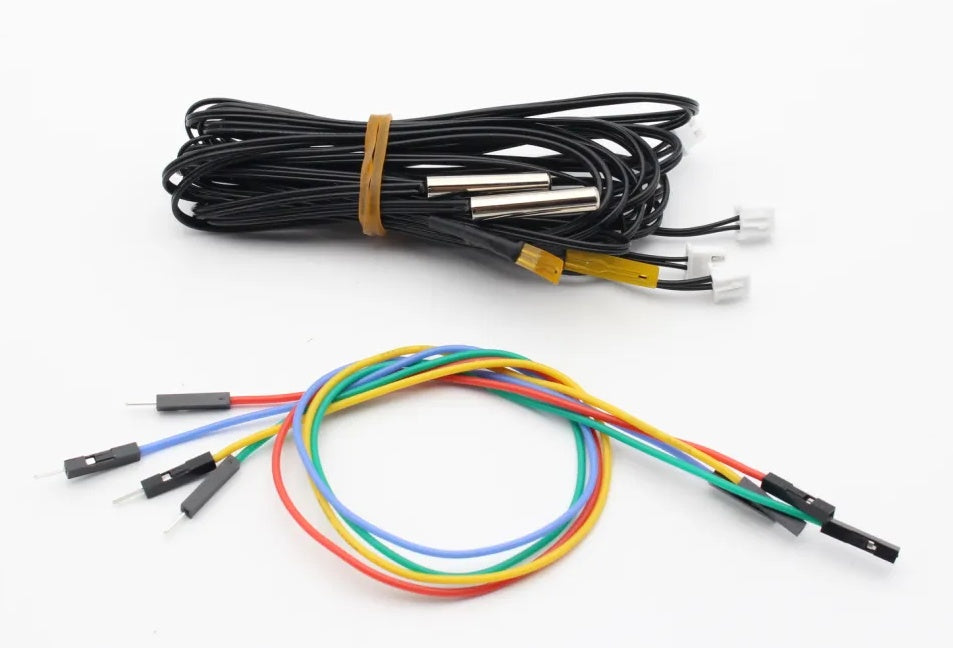

2x thin film tip B=3950 to 2-pin JST XH 100cm (black)
2x waterproof tip B=3950 to 2-pin JST XH 100cm (black)
RGB
1x 3-pin to 3-pin, 30cm (black)
I/O Connector
1x 2-pin dupont female to female 20cm (black)

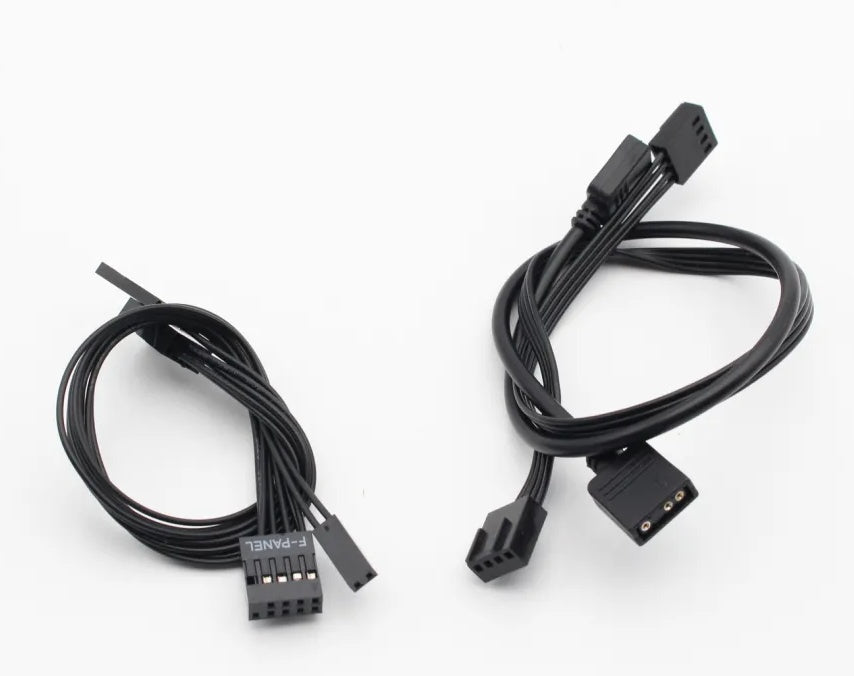

1x F_panel cable

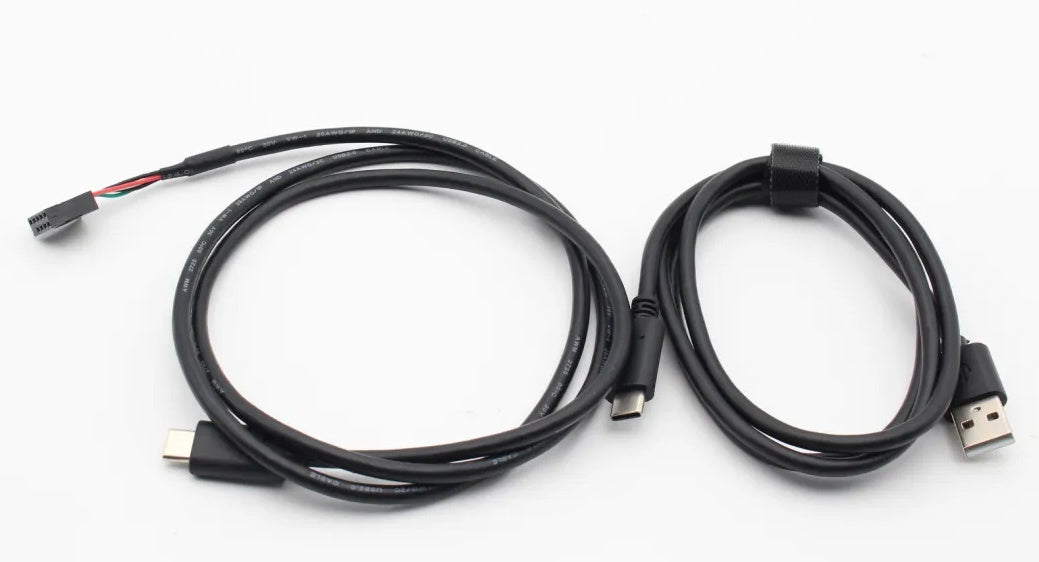

1x USB Type-C to Type-A, 100cm (black)
1x USB Type-C to internal USB header, 100cm (black)
Standoffs

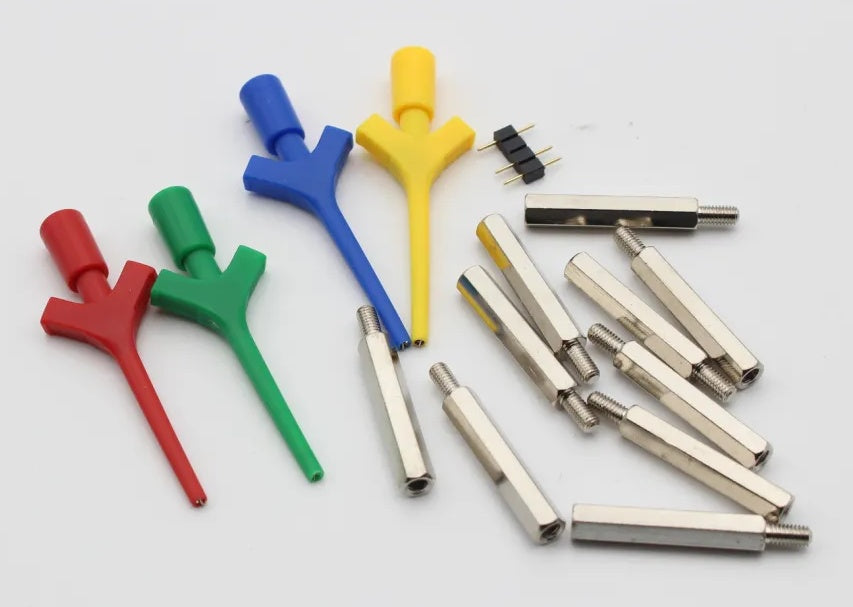

10x 25+6mm M3 nickel-plated copper
BENCHLAB 2 Features
Power Measurement
1x 24-pin ATX (12V, 5V, 3.3V, 5VSB)
2x 8-pin EPS (12V)
3x 6+2-pin PCIE (12V)
2x 12+4-pin 12VHPWR (12V)
Per-pin monitoring

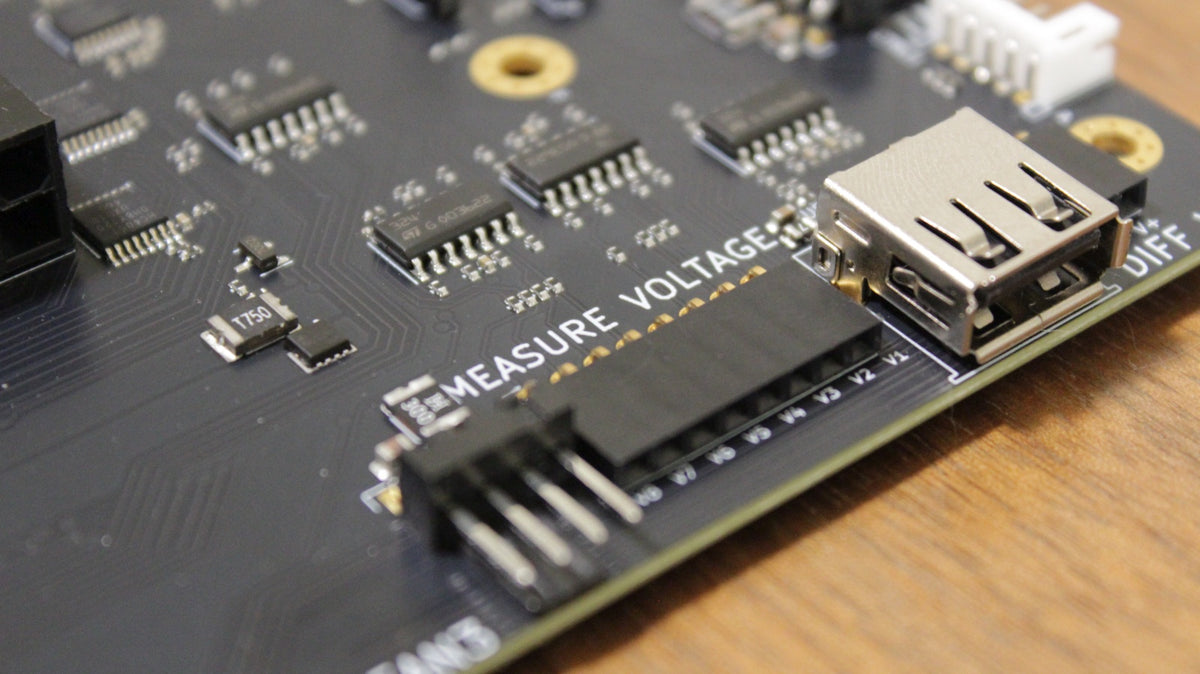

Voltage Measurement
1x ±18V differential
8x 0-4V single ended (MB)
4x 0-4V single ended (VGA)
Temperature Measurement
Ambient temperature
Ambient humidity
4x thermistor
4x 12VHPWR embedded temperature sensor
Fan Control

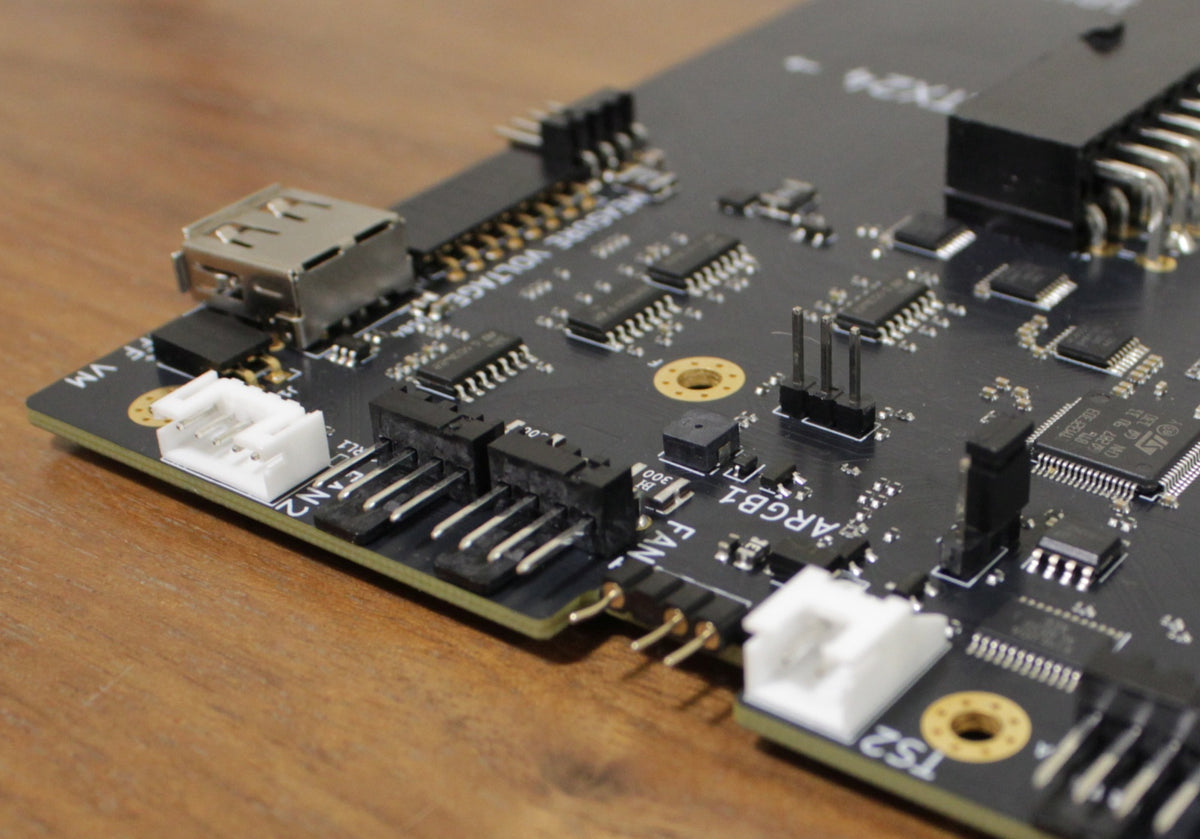

9x 4-pin (PWM)

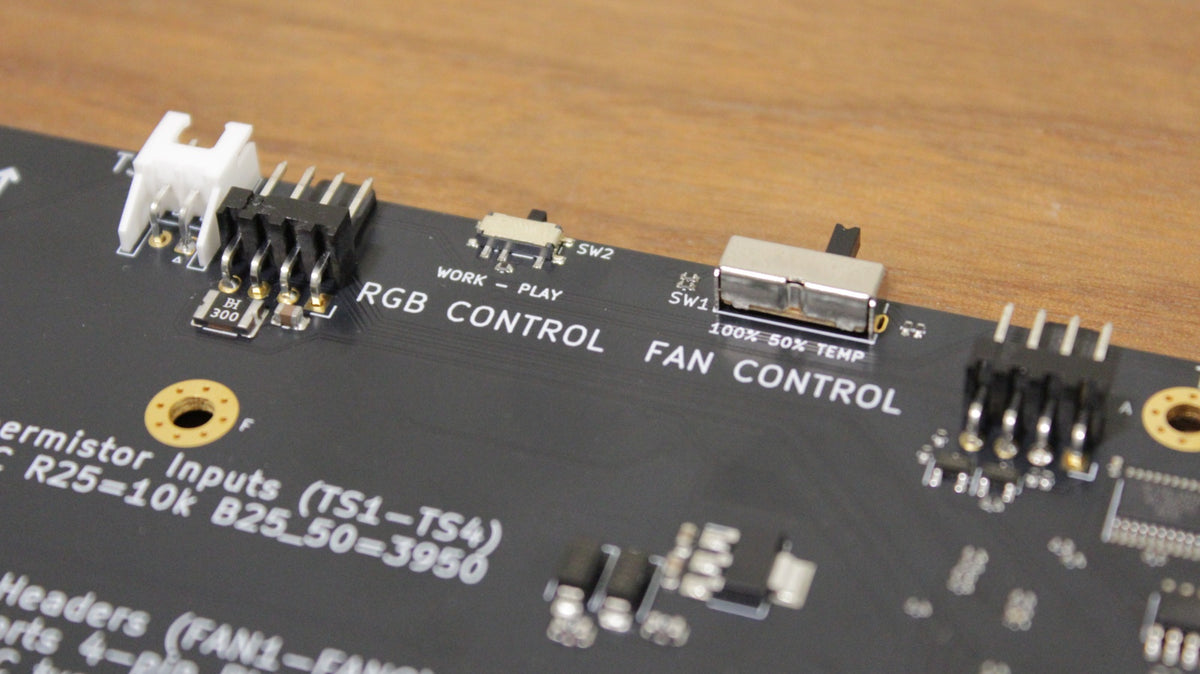

1x Fan control switch: 3 modes (full-speed, temp control, ext. control/half-speed)
On-board RGB
30x ARGB gen1
1x RGB control switch: on/off
I/O Devices
1x connector reserved for future functionality (5-pin header)

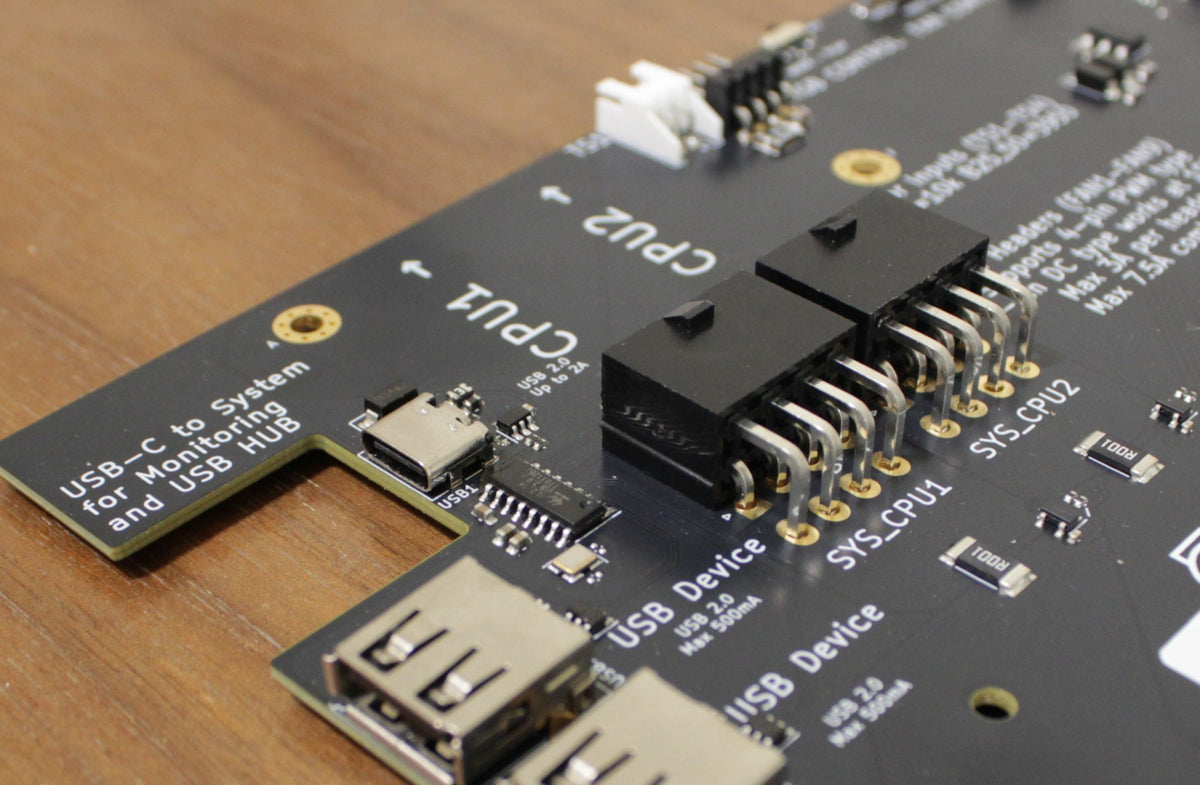

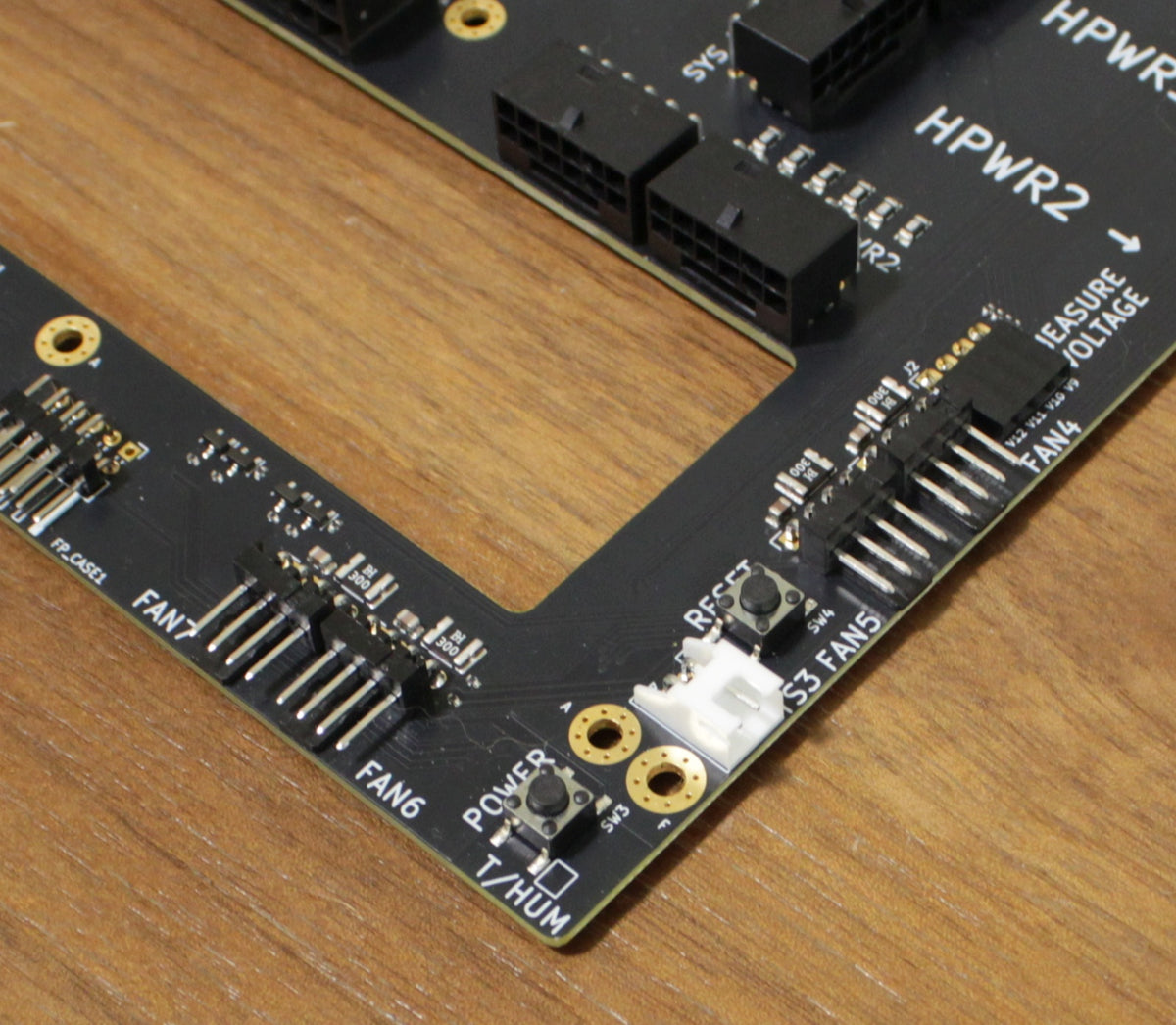

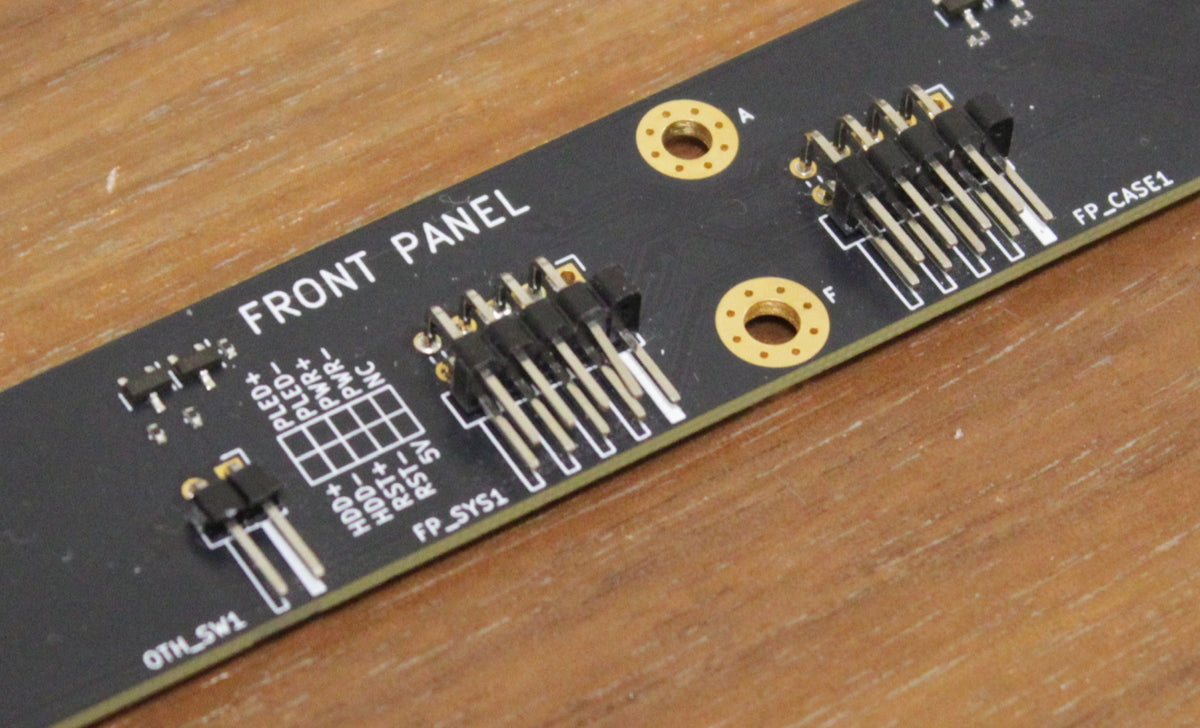

2x 9-pin F_panel header (1x MB, 1x Case)
2x button (1x power, 1x reset)
1x 2-pin other header
3x USB Type-A 2.0 (KB/M/FD)
1x USB Type-C for hub & MCU connection
Other
Boot jumper for switching to flash mode

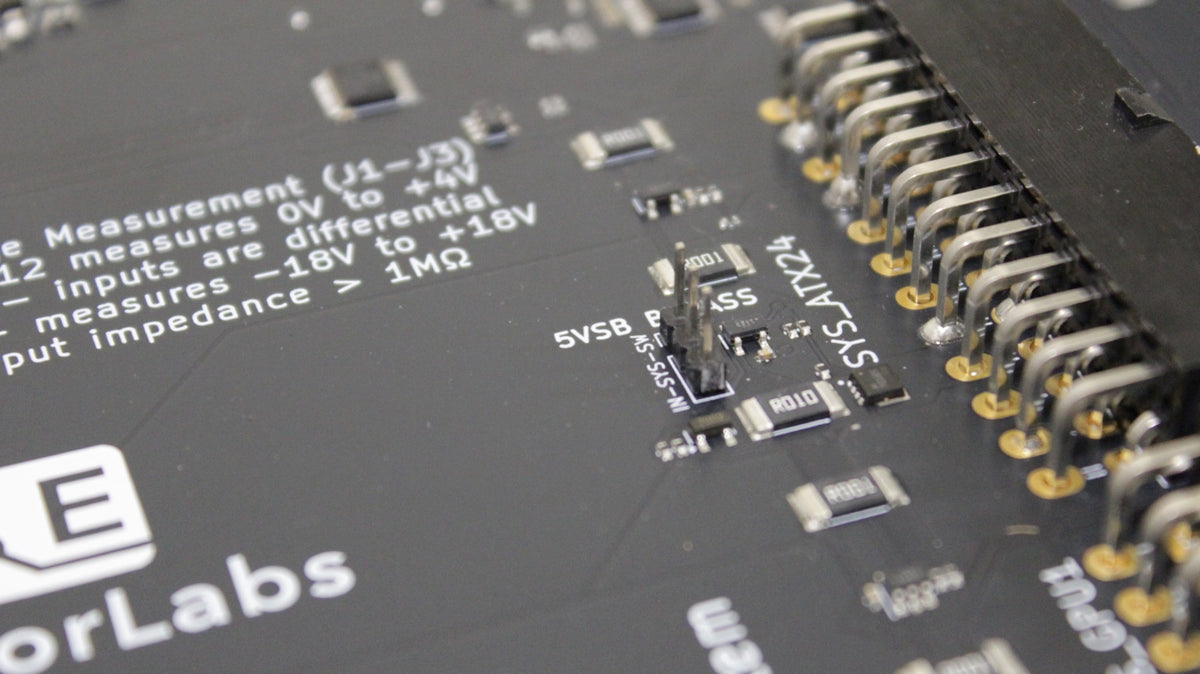

5VSB bypass jumper

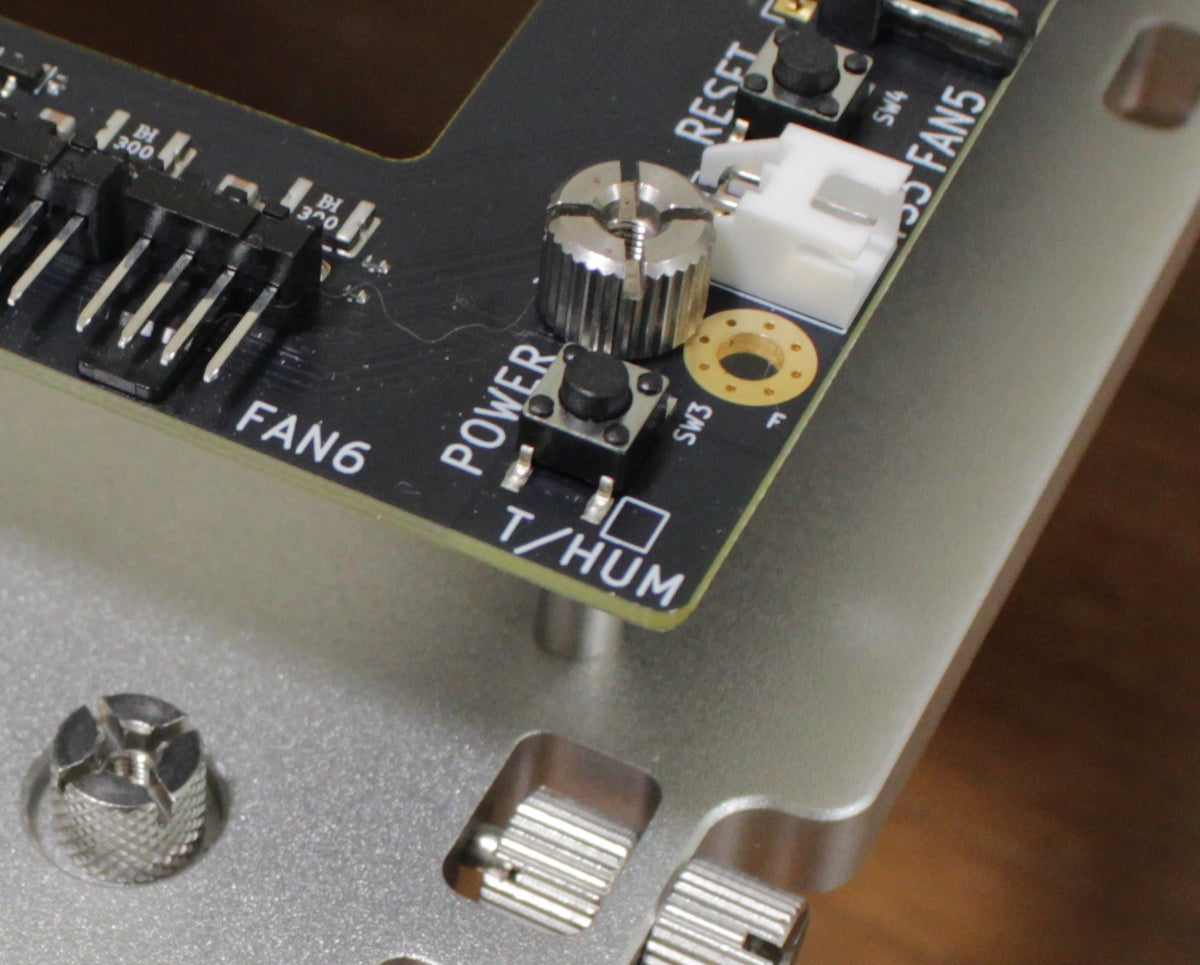

2x SSD mounting positions
Mounting holes for ATX, Frame 4000D, and Frame 5000D
